10 YEAR GUARANTEE
With our 10-year warranty on aluminium structure and powder coating, you can be confident that your fence will continue to look great and function flawlessly for years to come.
- The Blade, The Blade Pedestrian Gate
The Vertical Aluminium Blade Swing Gate
Start Customising
Adjustable-Cut to your desired width
Our Aluminium Blade Gate Kits offer a secure and modern finish to your property.
The Marine Grade 6063 aluminium alloy provides excellent finishing characteristics, corrosion resistance, and tensile properties. It is used for various interior and exterior architectural applications.
- Powder Coated
- Contemporary Finish
- Easy To Install
- Marine Grade
Package Includes:

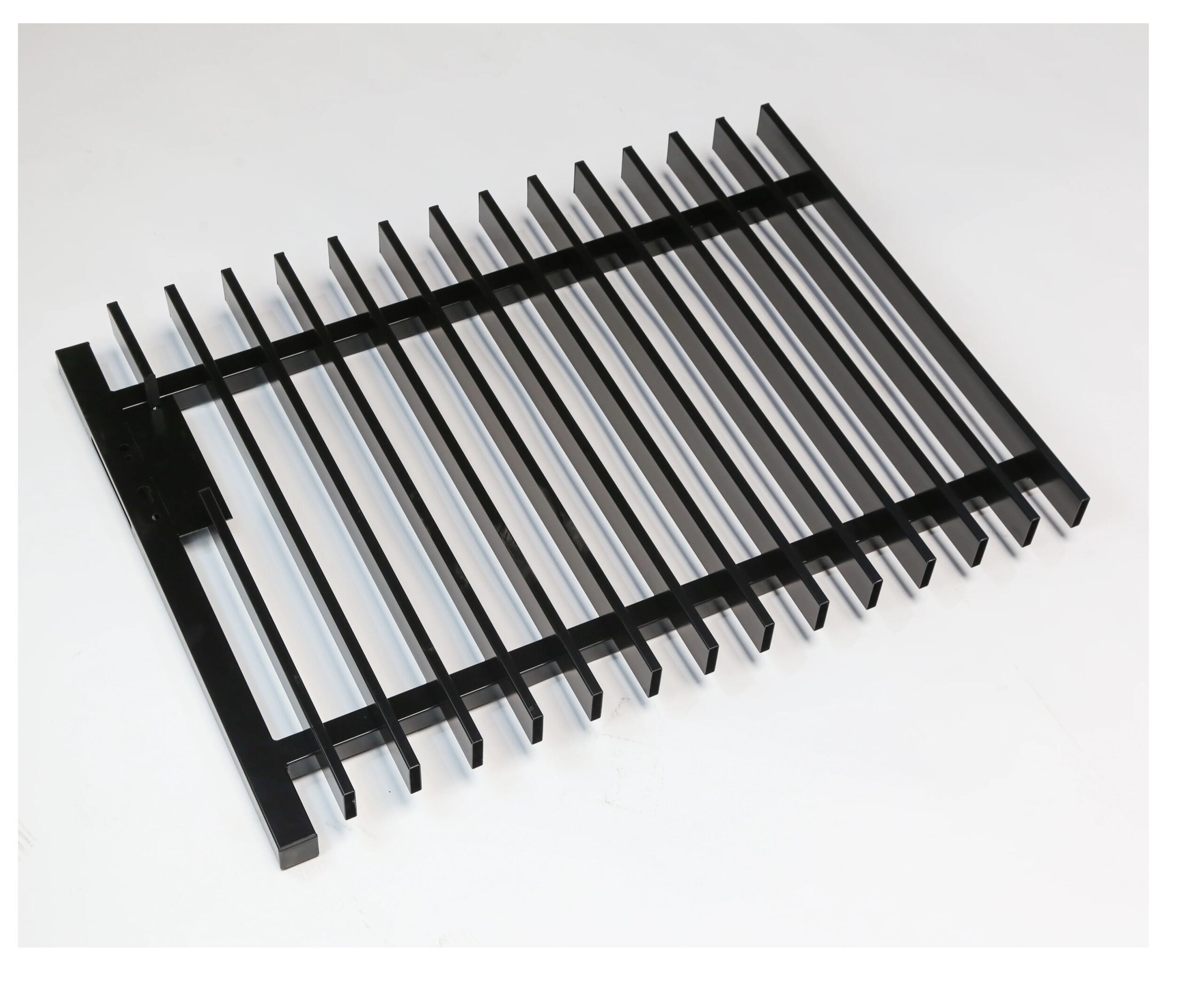

- 1x Pedestrian Gate (Adjustable width cut to your desired width)

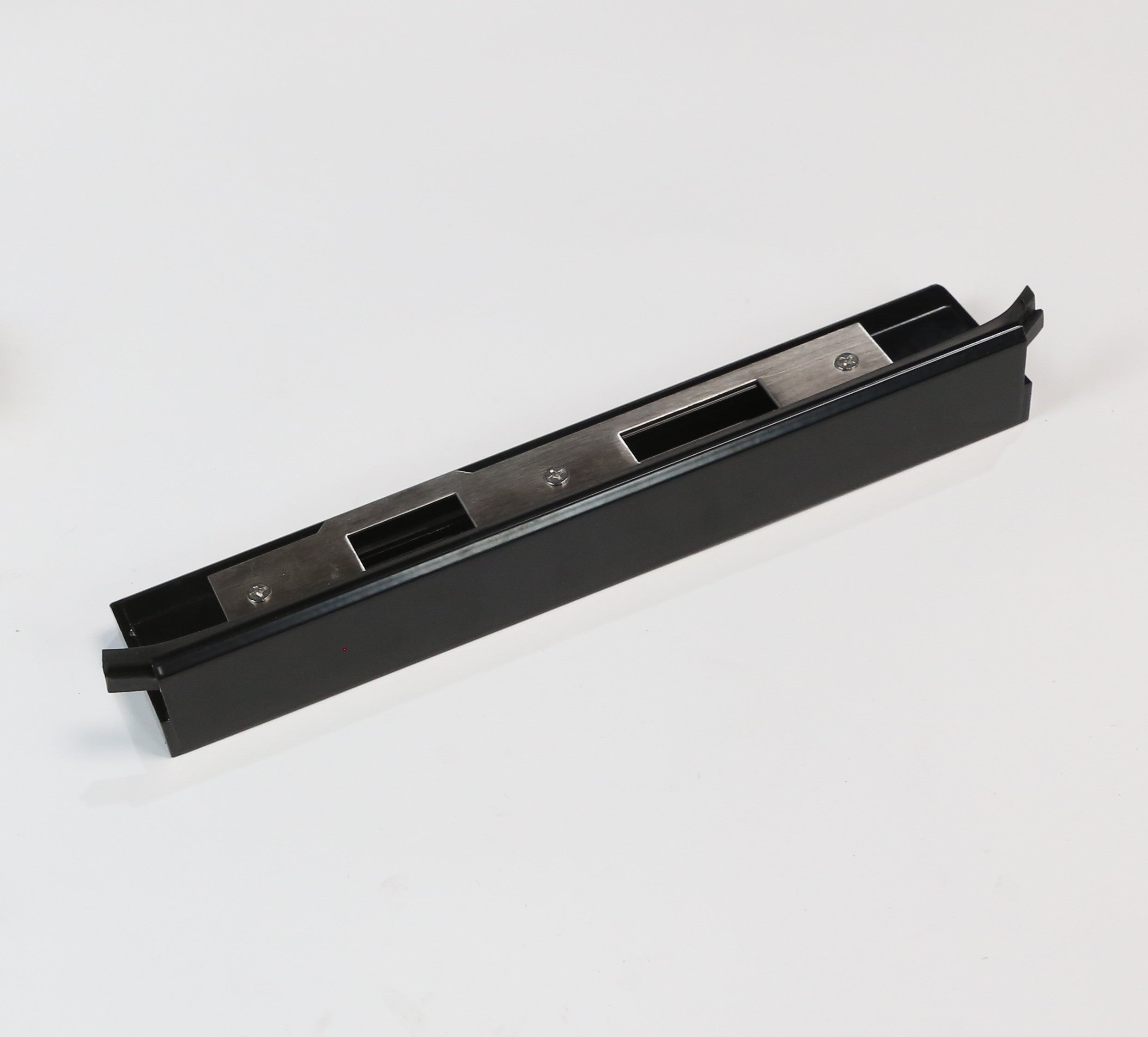

- 1x Gate Jamb with Striker Plate – Full Gate Height

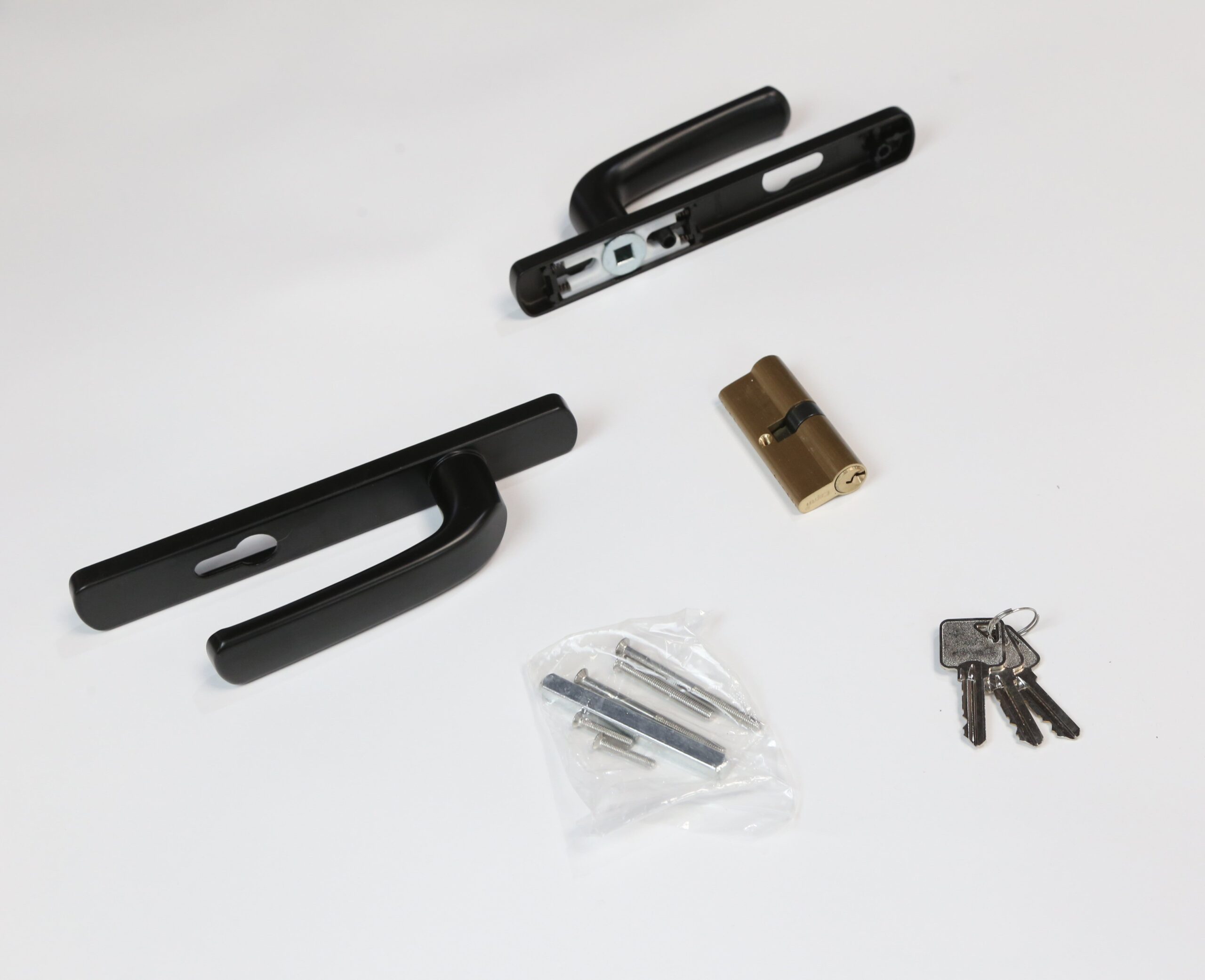

- 1x Black Mortice Lock System
- 1x Barrel
- 1x Lock
- 1x Plate
- 1x Spindle
- 2x Keys
Not Sure How Much You Need?
Fill out our simple quote request form and let our experts handle the measurements.
Technical Details/Drawings
The Blade Pedestrian Gate
Gate Panel Length 1500mm – NOTE: all gates are designed to be cut down to desired width
Heights | 900mm, 1200mm, 1500mm and 1800mm
Picket size | 65x16mm
Blade Spacing | 70mm
Rails 40x40mm
Lock | Mortise Lockset Black
Material | Aluminium marine grade 6063-T5
Colour | Black Satin Code AD063604250S Alesta powder coating Range
Fabrication: Double welded top bottom of each blade and rail
Weight | 900H 13kg, 1200H 18kg, 1500h 22kg, 1800H 28.kg
Applications | pools, front fences, parks and reserves, schools, boundary fences
Brochure
Pool Compliant
The Fin, The Blade, The Angled Fin and The Straight have all been NATA tested and comply with Australian Standard AS 1926.1. Reports and Certifications are all available on request.
Shipping and Delivery
Pick up from Warehouse (providing stock is on hand and available | Next day pick up Delivery Victoria (providing stock is on hand and available | 3-5 days Freight from when stock is available allow up to 5-7 days
Refund
We offer a 48-hour refund period, which is valid only if the boxes, flat packs, and packaging remains unopened and untampered with. Refunds will not be processed for items that have been opened or altered in any way.
Warranty
ONLINE FENCE SUPPLIES PYT LTD. (hereafter “Online Fence”) guarantees that the aluminium fence and gate products are designed and manufactured for a long-life span and provides the following limited warranty:
- Aluminium Structure
Online Fence warrants that the aluminium structure of fence and gate will be free from defects in materials and workmanship when used under normal residential conditions. Online Fence provides a 10 year warranty for the aluminium structure.
- Colours Warranty
Online Fence warrants that powder coated film on the product will not chip, peel, crack or flake. However, the colour ingredients will oxidize gradually under high humidity , high temperature and high sunshine environments. Then, the colours will fade gradually. Online Fence provides 10 year warranty for Powder Coated Colours and 10 years warranty for Wooden Colours (Outdoor weather resistant wood grain) grain).
If defects occur within the quality warranty period from the date of delivery,
Online Fence Supplies will replace the defective ones or provide compensation.
Powder Coating Warranty
For the weather-resistant architectural powder coating Alesta® AD2000 provided by our company, if the powder construction process of your company meets our requirements, the product after curing into a film can be used in a normal outdoor environment without external force or man-made damage, our company can provide a 10-year product warranty.
Can you deliver to my area?
What are the colour and style options available for aluminium fencing?
At this stage we only offer the following colours:
- Blade Fencing: Black
- Fin Slimline Blade: Monument
- Angled Blade: Black, Surfmist
- Horizontal Slat: Woodland Grey, Monument, Surfmist, Primrose, Black, Woodgrain Look
- The Straight: Monument
Do you supply and install custom fencing and gates?
What is powder coating?
Powder coating is a process where a dry powder is applied to the fence, electrostatically charged, and then heated to create a durable and protective finish. This makes your fence more low maintenance, resistant to wear and tear, and protected against the elements.
What is Wood Grain Transfer Printing Process?
- Aluminum Profile Preparation – (Casting & Extrusion/Cutting & Shaping)
- Surface Pretreatment – (Degreasing/Washing/Pickling/Chromizing/Drying)
- Powder Coating – (Base Powder)
- Wood Grain Heat Transfer Printing – (Covering/Heat Transfer)
- Post-treatment and Inspection
Have our team of experienced and fully licenced fence installers manage your project from start to finish.
We understand fencing and we also know how time poor people are in modern society. Online Fence Supplies is a division of Macedon Fencing Group who have a renowned family history in the fencing industry for over 30 years. Our fence installers are part of our team and many have been with us from the start.
For all our Vertical Blade and Horizontal Aluminium Slat fencing we can have our team install your fence from $100 per meter. For all other fencing ranges install pricing will depend on the scale and details of the job.
Contact our office for a quote on our professional installation service.
10 YEAR WARRANTY GUARANTEE
The Modern Picket Fence! Designed for strength and durability, our Vertical Blade fencing range offers not only privacy and security but also a stylish dimensional look to both fences and gates.
ALUMINIUM STRUCTURE
10-year warranty covers the structural integrity of your fence or gate, and is your guarantee that they are free from defects when used under normal residential conditions.
POWDER COATING
This 10-year warranty covers Powder Coated colours. We use Alesta decorative powder coating to deliver a superior finish for all our aluminium products.
Pick up from Warehouse
We offer fast pickup from our Melbourne warehouse free of charge within the following hours.
Monday to Friday 8:30am – 3pm.
After your order is placed via our online store, you may pick up directly from the warehouse (normally next day, if ordered before 2pm). Once your order is processed and entered at the warehouse, we will send you a text or email with all pickup details.
Delivery
To ensure accurate and fair shipping costs, we have implemented a zone-based shipping system. This means that shipping rates will vary depending on the designated zone in which your delivery address is located.
Interstate Shipping: Please contact us before placing an order online; our team will work out the most competitive freight pricing by calculating the weight and pallet size. Charges for interstate delivery will need to be processed vis our office over the phone.
To read our full shipping policy, please click here.
